The PC-A3H is a representative desktop hybrid profile covering the most commonly requested spec band for personalization retailers and prototyping shops. Actual lead time and MOQ depend on printhead configuration, rotary module inclusion and certification requirement.
| Parameter | Value |
|---|---|
| Print area | A3 (297×420mm) |
| Printhead | Epson piezoelectric, single or dual-head configurable |
| LED-UV curing | 395nm wavelength, dual-side lamp |
| Rotary module | Optional, cylindrical objects 20mm–85mm diameter |
| Ink configuration | CMYK + White + Varnish |
| Throughput | 10–15 sqm/hr (reference) |
| Sample lead time | 15–20 business days (reference) |
| Standard MOQ | 20–50 units (reference) |

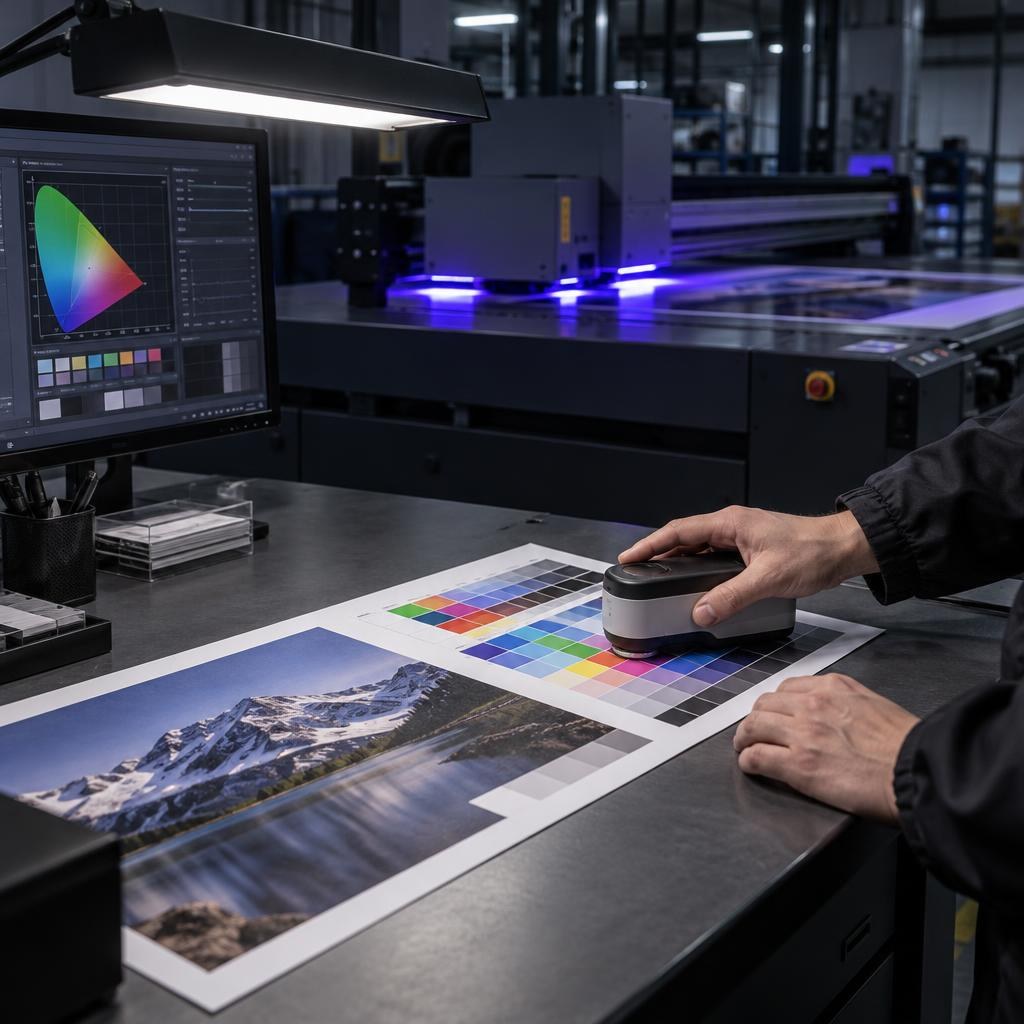

Every unit is sampled for printhead nozzle check, color calibration accuracy and ink adhesion (ASTM D3359 cross-hatch reference) against the confirmed spec sheet before it leaves the factory.
